Planned energy-efficient retrofitting of a residential building in Italy

  • Enzo Zanchini1Email author,
  • Claudia Naldi1,
  • Stefano Lazzari2 and
  • Gian Luca Morini1
Future Cities and Environment20151:3

https://doi.org/10.1186/s40984-015-0004-9

Received: 3 February 2015

Accepted: 1 May 2015

Published: 21 August 2015

Abstract

The planned energy-efficient retrofitting of a residential building in Bologna, North-Center Italy is presented. The building is a detached house with an unheated basement, three floors with 2 apartments each, and an unheated attic. The total heated floor area is 281.9 m2. The external wall is made of solid brick masonry and most windows are single glazed; no thermal insulation is present. Space heating is supplied by a gas boiler and radiators in the rooms. DHW is supplied by single-apartment electric boilers in 5 apartments and by a gas boiler in one apartment. Lighting is obtained by incandescent lamps.

The proposed retrofitting includes: external thermal insulation of the vertical walls by calcium silicate hydrates and loft insulation by mineral wool; replacement of windows; installation of a multifunction air-to-water heat pump for heating, cooling and DHW; replacement of the radiators by new heat exchangers; LED lighting; installation of PV panels. The building has been simulated by TRNSYS 17, and the heat pump has been simulated by own MATLAB codes. The retrofitting will reduce the total annual use of primary energy (excluding appliances) from 332.5 to 44.8 kWh/m2, and will yield an important improvement of thermal comfort.

Keywords

Energy retrofitting Residential building Multifunction heat pump PV panels Hourly simulation

Introduction

The economic growth of the 20th century has been based on a progressive increase of the world annual use of fossil fuels. The world annual use of primary energy is still increasing, and fossil fuels represent even now the most important source of primary energy, as shown in Fig. 1, which illustrates the world annual use of primary energy by source from 1980 to 2011, according to EIA (US Energy Information Administration) (http://www.eia.gov/cfapps/ipdbproject/IEDIndex3.cfm#). In 2011, 86 % of the world primary energy use is due to oil, carbon and gas. The fossil-fuel-based development has caused two important problems: the reserves of oil and natural gas are decreasing and the emission of carbon dioxide and of other greenhouse gases is causing a climate change (https://www.ipcc.ch/report/ar5/wg1/). As a consequence, all the industrialized and developing countries and, most of all, the European Union, are struggling to shift the economic growth towards a sustainable development, based on two main pillars: the increase of energy efficiency and the use of renewable energy sources. The energy policy of the European Union already obtained some success: the annual use of primary energy of the Union is slightly decreasing from 2006, as shown in Fig. 2. The figure illustrates the use of primary energy of the European Union by sector from 1990 to 2012, according to Eurostat (European Commission portal for statistics) (http://ec.europa.eu/eurostat/data/database); it reveals that the fractions of energy use in the residential sector and in the service sector are quite relevant. The fractions of primary-energy use in sectors for 2012 are better evidenced in Fig. 3, where it is shown that the sum of the fractions which refer to the residential sector and to the service sector, i.e., the total fraction due mainly to building operation, is 39.7 %. As a consequence, an important step towards the reduction of the use of fossil fuels in Europe would be the enhancement of the energy efficiency of buildings.
Fig. 1

World annual use of primary energy by source from 1980 to 2011, according to EIA

Fig. 2

Annual use of primary energy by sector in Europe, from 1990 to 2012, according to Eurostat

Fig. 3

Fractions of primary energy use in main sectors in Europe, in 2012, according to Eurostat

According to an official document of the European Commission (http://www.ectp.org/cws/params/ectp/download_files/36D2981v1_Eeb_cPPP_Roadmap_under.pdf), buildings use 40 % of the total EU energy consumption and generate 36 % of greenhouse gases in Europe. The construction sector is expected to reduce its CO2 emissions by at least 80 % and its energy consumption by as much as 50 % by 2050. Since the replacement rate of the existing stock is very small (1–2 % per year), the energy retrofitting of existing buildings should play an important role to reach this goal.

A wide research activity on the techniques for energy retrofitting of buildings has been performed in the last decades. Some studies have concerned the optimization of thermal insulation (Ucar and Balo 2009; Yu et al. 2009; Daouas 2011; Cuce et al. 2014), others the improvement of the plant efficiency (Bizzarri and Morini 2006; Zhao et al. 2008, 2009; Chan et al. 2010; Terlizzese and Zanchini 2011; Brignoli et al. 2013; Liu et al. 2013; Naldi et al. 2014), others the energy-saving potential (Balaras et al. 2000; Amstalden et al. 2007; Ascione et al. 2011; Chidiac et al. 2011a, b; Dall’O’ and Sarto 2013; Shahrokni et al. 2014), others again the effects of solar chimneys, permeable coverings, cool roofs and green roofs (Afonso and Oliveira 2000; Orosa and Oliveira 2009; Pisello et al. 2013; Santamouris et al. 2011; Santamouris 2014).

Ucar and Balo (Ucar and Balo 2009) determined the optimum insulation thickness of external walls for four cities with different climatic conditions in Turkey, with reference to Foamboard, extruded polystyrene and fiberglass as insulation materials. Yu et al. (Yu et al. 2009) studied the optimization of the insulation thicknesses of expanded polystyrene, extruded polystyrene, foamed polyurethane, perlite, and foamed polyvinyl chloride, for a typical residential wall in China. Daouas (Daouas 2011) evaluated, by an analytical method based on Complex Finite Fourier Transform, the optimum insulation thickness, the energy saving and the payback period for a typical wall structure in Tunisia, in the presence of both cooling and heating loads. Cuce et al. (Cuce et al. 2014) analyzed the optimum thermal insulation thickness of aerogel and its environmental impacts for the climatic conditions of Nottingham, UK.

Bizzarri and Morini (Bizzarri and Morini 2006) evaluated the reduction in pollutant emissions obtainable by installing new hybrid plats in hospitals. Several hybrid schemes were investigated and compared: phosphoric acid fuel cells, solar thermal systems and PV solar systems. Zhao et al. (Zhao et al. 2008) designed and numerically studied a novel dew point air conditioning system, and Zhao et al. (Zhao et al. 2009) investigated the feasibility of this system in several China regions. Chan et al. (Chan et al. 2010) pointed out advantages and limitations of passive solar heating and cooling technologies and suggested research guidelines to improve the economic feasibility of these techniques. Terlizzese and Zanchini (Terlizzese and Zanchini 2011) studied, through an economic and an exergy analysis, the feasibility of alternative plants for a zero carbon building complex in Italy. Brignoli, Cecchinato, and Zilio (Brignoli et al. 2013) performed an experimental investigation on air-to-water heat pumps, and compared a multiport aluminum flat-tube heat exchanger to a round-tube finned one. Liu et al. (Liu et al. 2013) studied a new kind of heat pump system, which utilizes gray water as heat source and sink for heating and cooling of residential buildings. Naldi et al. (Naldi et al. 2014) developed a MATLAB code for the choice of the optimal balance-point temperature of air-to-water heat pumps for heating.

Balaras (Balaras et al. 2000) audited 8 apartment buildings, located in three climatic zones of Greece, and showed that a considerable energy saving in heating, air conditioning, DHW production and lighting can be obtained by proper retrofit actions. Amstalden et al. (Amstalden et al. 2007) investigated the profitability of energy-efficient retrofit investments in the Swiss residential building sector from the house owner’s perspective. Ascione, de Rossi and Vanoli (Ascione et al. 2011), through a dynamic simulation code experimentally calibrated, analyzed the effectiveness of several energy retrofit solutions for a historical building in Italy. Chidiac et.al. developed a methodology, based on the simulation code EnergyPlus, to determine the energy saving potential in the Canadian office building stock (Chidiac et al. 2011a); they also analyzed the effectiveness of single and multiple energy retrofit measures on the energy consumption of office buildings (Chidiac et al. 2011b). Dall’O’ and Sarto (Dall’O’ and Sarto 2013) investigated the technical end economic potential for increasing energy efficiency of 49 school building complexes in Lombardia (Northern Italy). Shahrokni et al. (Shahrokni et al. 2014) evaluated the energy efficiency potential in Stockholm, and showed that the retrofitting of the building stock to current building codes would reduce heating energy use in the city by one third.

Afonso and Oliveira (Afonso and Oliveira 2000) studied numerically and experimentally the increase in ventilation rate obtainable by solar chimneys. Orosa and Oliveira (Orosa and Oliveira 2009) investigated the effects of indoor permeable coverings on thermal comfort and energy saving in several office buildings in Spain. Pisello, Santamouris and Cotana (Pisello et al. 2013) analyzed the coupled passive–active effect produced by a cool roof on industrial-office building located in Rome. Santamouris, Synnefa and Karlessi (Santamouris et al. 2011) and Santamouris (Santamouris 2014) presented review papers on the positive effects obtainable by advanced cool materials and green roofs.

The EU-funded Project HERB (Holistic Energy-efficient Retrofitting of residential Buildings) started in October 2012, and aims to develop innovative technologies for the energy retrofitting of buildings and to perform demonstrations of holistic energy-efficient retrofitting of residential buildings in seven European Countries: United Kingdom, Italy, Portugal, Greece, Spain, Switzerland and Netherlands. In Italy, the demonstration concerns a residential building located in Bologna, North-Center Italy, a detached social house with 6 apartments owned by the Municipality of the city, with a total heated floor area of 281.9 m2. The external wall is made of solid bricks and is uninsulated; most windows are single glazed. Space heating is supplied by means of a gas boiler and radiators in the rooms, while DHW is supplied by single-apartment electric boilers in 5 apartments and by a gas boiler in one apartment. Lighting is obtained by incandescent lamps. With reference to the TRNSYS typical meteorological year, the annual use of primary energy for heating, DHW and lighting is 332.5 kWh/m2 and the annual emission of CO2 is 92.5 kg/m2. The efficiency targets of the retrofitting, prescribed in the HERB DoW, are a reduction of at least 80 % in the use of primary energy, a reduction of at least 60 % in the CO2 emission, an annual use of primary energy less than 50 kWh/m2, excluding appliances. The proposed retrofitting includes: external thermal insulation of the vertical walls by a 16 cm layer of calcium silicate hydrates; insulation of loft and floors towards unheated or external spaces by mineral wool; replacement of windows; installation of a multifunction air-to-water heat pump for heating, cooling and DHW; replacement of the radiators by high-efficient fan coils and low temperature radiators; LED lighting; installation of PV panels on the Southeast and the Northeast pitches of the roof. The following efficiency targets are expected to be reached: 86.5 % reduction of the use of primary energy, 86.3 % reduction of CO2 emission, annual use of primary energy equal to 44.8 kWh/m2, including summer cooling and dehumidifying, presently unavailable.

Description of the building and climatic data

The demonstration house is located in an area very close to the center of Bologna, main city of the region Emilia-Romagna, North-Center Italy. It is composed of three floors, with 2 apartments each, an unheated attic, and an unheated basement which contains the boiler room. The roof has 4 pitches, with orientations Southeast, Southwest, Northeast and Northwest. The first floor is larger than the second and the third, which are identical. The house has a small garden, with high trees. Street views of the Northeast and of the Southwest side of the house are reported in Fig. 4; 3-D models of the house, which illustrate the Northeast and Northwest sides and the Southwest and Southeast sides, are reported in Fig. 5. In the 3-D models, most trees have been hidden.
Fig. 4

Street views of the house: Northeast side (left) and Southwest side (right)

Fig. 5

3-D models of the house: Northeast and Northwest sides (left); Southwest and Southeast sides (right)

Apartments have been numbered as follows: Apartments 1a and 1b at the first floor; Apartments 2a and 2b at the second floor; Apartments 3a and 3b at the third floor. Apartments with letter a are facing Northwest; those with letter b are facing Southeast. The first floor is larger than the second and the third. One of the apartments at the first floor (Apartment 1b) has, as a part of the roof, an inaccessible plane terrace. The second and the third floor are identical. Plans of the apartments are reported in Fig. 6: the first floor is represented on the left, the second and the third floor (which are identical) are represented on the right. The rectangle which appears in the lower part of the figure at right represents the inaccessible terrace which forms a plane roof for a part of Apartment 1b. The heated floor areas of the apartments are as follows: Apartment 1a: 44.7 m2; Apartment 1b: 80.2 m2; Apartments 2a and 3a: 39.2 m2; Apartments 2b and 3b: 39.3 m2. The total heated floor area is 281.9 m2.
Fig. 6

Plans of the apartments: first floor on the left; second and third floor on the right

The external wall, made of solid brick masonry, is 31 cm thick and uninsulated. Most windows are single glazed, with wood frame, except those of Apartments 2b and 3b, which are double glazed with aluminum frame. The internal height of each floor is 3.36 m, and the floor thickness is 0.27 m. The unheated basement is placed under Apartment 1a and under about one third of Apartment 1b. The rest of Apartment 1b is on the ground. No thermal insulation is placed between the first floor and the basement, or the ground, as well as between Apartment 1b and the terrace. The unheated loft is non ventilated and uninsulated; its lowest height is 0.20 m (at the sides), and its highest height is 1.60 m (at the center). It has a very small window, which is closed.

Space heating is supplied by means of a gas boiler, placed in the basement, and radiators in the rooms, under windows. The gas boiler is a modulating one, installed in 2007; it has a nominal power of 62 kW, a certified efficiency equal to 0.93 at nominal power and slightly higher at reduced power. A constant efficiency equal to 0.93 has been considered. The distribution, emission and control efficiencies of the heating system can be assumed as equal to 0.90, 0.95 and 0.97 respectively, according to the national standard UNI TS 11300–2. Thus, the overall efficiency of the heating system is 0.771.

DHW is supplied by single apartment boilers: electric boilers in Apartments 1a, 2a, 2b, 3a, 3b; a gas boiler in Apartment 1b. No summer air conditioning is present. All rooms, including bathrooms, have windows.

The main properties of the opaque enclosure elements in the present state (decription, thickness s, transmittance U), are summarized in Table 1; for each element, the description starts from the internal (heated) space. Heat transfer coefficients have been determined by considering standard thermal conductivities of the materials employed, without final roundations: there is no claim of accuracy in the last decimal places.
Table 1

Main properties of the opaque enclosure elements, in the present state

Element

Description

s [m]

U [W/(m2K)]

Vertical wall

Internal plaster, solid brick masonry, external plaster

0.31

1.797

Floor on basement

Tiles, subfloor, floor brick and concrete, plaster

0.26

1.476

Floor on ground

Tiles, subfloor, floor brick and concrete

0.25

1.845

Terrace floor

Plaster, floor brick and concrete, subfloor, tiles

0.26

1.476

Loft floor

Internal plaster, floor brick and concrete

0.09

2.903

Roof

Internal plaster, floor brick and concrete

0.21

2.279

Bologna is located in the center of the region Emilia Romagna, at the border between the Padana flat and the foot of the mountains Appennino Tosco-Emiliano. The mean altitude is 54 m above sea level, the latitude is 44° 29’ North, the longitude is 11° 20’ East. Since the dynamic simulations of the building are performed through TRNSYS 17, the typical meteorological year (TMY) for Bologna available in that program is employed. The mean monthly values of the external air temperature T e obtained from the TRNSYS TMY, listed in the first row of Table 2, are slightly lower than those reported in the National Standard UNI 10349, which are listed in the second row of Table 2. The values of the monthly mean relative humidity according to TRNSYS TMY are reported in the third row of Table 2, and those according to UNI 10349 are reported in the fourth row. The average wind speed, according to UNI 10349, is 1.6 m/s, with main direction Southwest. The mean monthly values of the beam radiation H b and of the diffuse radiation H d on a horiontal surface according to UNI 10349, in MJ/m2 per day, are illustrated in Fig. 7.
Table 2

Monthly mean values of temperature and relative humidity in Bologna, TRNSYS (first and third row) and UNI 10349 (second and fourth row)

Month

Jan

Feb

March

April

May

June

July

Aug

Sept

Oct

Nov

Dec

T e [°C]

1.7

4.3

9.4

13.8

20.2

21.5

24.4

24.1

20.9

14.4

8.4

3.9

T e [°C]

2.1

4.6

9.4

14.2

18.2

22.9

25.4

24.9

21.2

14.9

8.7

4

φ

0.82

0.78

0.71

0.73

0.71

0.70

0.66

0.68

0.71

0.75

0.83

0.82

φ

0.89

0.87

0.72

0.67

0.68

0.65

0.57

0.60

0.64

0.74

0.85

0.86

Fig. 7

Mean monthly values of direct and diffuse radiation on a horizontal surface, per day

Simulation scenarios

The following simulation scenarios have been considered.
  1. 1.

    Present State


  2. 2.

    Retrofit 1 (thermal insulation of walls and floors)


  3. 3.

    Retrofit 2 (thermal insulation of walls and floors, replacement of windows)


  4. 4.

    Retrofit 3 (thermal insulation of walls and floors, replacement of windows, installation of an air-to-water heat pump for heating and DHW)


  5. 5.

    Retrofit 4 (thermal insulation of walls and floors, replacement of windows, installation of an air-to-water heat pump for heating and DHW, LED lighting)


  6. 6.

    Retrofit 5 (thermal insulation of walls and floors, replacement of windows, installation of an air-to-water heat pump for heating, cooling, dehumidifying and DHW, LED lighting, PV collectors).


In Scenario Retrofit 1, the following insulations of the opaque enclosure components are adopted. The vertical wall is insulated externally by a 16 cm layer of calcium silicate hydrates, with thermal conductivity 0.045 W/(mK). This material is recyclable and requires a very low use of primary energy for its production. The floor on basement is insulated by a 9.5 cm layer of mineral wool, with thermal conductivity 0.032 W/(mK). The terrace between first and second floor is insulated by a 14 cm layer of mineral wool, with thermal conductivity 0.037 W/(mK). The loft floor is insulated by a 20 cm layer of mineral wool, with thermal conductivity 0.04 W/(mK). The floor on ground and the roof are unchanged. The main properties of the retrofitted enclosure elements are reported in Table 3; for each element, the description starts from the internal (heated) space.
Table 3

Main properties of the retrofitted enclosure elements

Element

Description

s [m]

U [W/(m2K)]

Vertical wall

Internal plaster, solid brick masonry, external plaster, hydrate calcium silicates 16 cm

0.47

0.243

Floor on basement

Tiles, subfloor, floor brick and concrete, plaster, mineral wool 9.5 cm

0.355

0.274

Terrace floor

Plaster, floor brick and concrete, subfloor, tiles, mineral wool 14 cm

0.40

0.224

Loft floor

Internal plaster, floor brick and concrete, mineral wool 20 cm

0.29

0.187

Besides the thermal insulation of the opaque enclosure elements, scenario Retrofit 2 includes the replacement of all windows by double glazed windows with wood frame, having a 16 mm Argon layer and low emissivity glass; the glass transmittance is U g  = 1.00 W/(m2K) and frame transmittance is U f  = 1.84 W/(m2K).

In addition to the retrofitting elements of Retrofit 2, Scenario Retrofit 3 includes the installation of a multifunction air-to-water heat pump with inverter, which provides heating and DHW. The capacity of the thermal storage for DHW is 1.0 m3; that of the thermal storage for heating is 0.2 m3. In order to ensure a high COP of the heat pump during the heating season and to allow also summer cooling and dehumidifying (additional service provided only in Scenario Retrofit 5), the present radiators are replaced by new high-efficiency fan coils for living rooms and bedrooms, and by low temperature radiators for bathrooms. The new fan coils and radiators operate, during the heating season, with a water inlet temperature between 40 °C and 38 °C. Values of the thermal power supplied by the heat pump in heating mode, with water delivered at 40 °C and return temperature 34 °C, for several values of the external air temperature T e and of the compressor frequency, are reported in Table 4; the corresponding values of the COP are reported in Table 5.
Table 4

Heating power of the heat pump, kW, with hot water delivered at 40 °C



Frequency [Hz]

T e [°C]

110

90

70

50

30

−7

7.63

6.01

4.53

3.15

1.89

2

9.99

7.91

6.01

4.19

2.51

7

11.70

9.14

6.95

4.90

2.93

12

13.50

10.60

8.09

5.66

3.41

Table 5

COP of the heat pump, with hot water delivered at 40 °C



Frequency [Hz]

T e [°C]

110

90

70

50

30

−7

2.65

2.71

2.67

2.51

2.15

2

3.27

3.38

3.39

3.21

2.78

7

3.75

3.85

3.88

3.72

3.22

12

4.29

4.44

4.49

4.30

3.76

When the heat pump works for DHW production, water is delivered with highest temperature 50 °C and lowest temperature 48 °C. The corresponding return temperatures are 40 °C and 38 °C. Values of the COP of the heat pump working for DHW production with evaporator in external air and water delivered at 50 °C, for several values of the external air temperature and of the compressor frequency, are reported in Table 6.
Table 6

COP of heat pump for DHW production at 50 °C and evaporator in external air



Frequency [Hz]

T e °C

110

90

70

50

30

−7

2.19

2.22

2.19

2.06

1.79

2

2.64

2.71

2.70

2.57

2.25

7

2.97

3.06

3.04

2.94

2.57

12

3.36

3.49

3.49

3.37

2.97

20

4.15

4.35

4.36

4.24

3.74

25

4.69

4.89

4.93

4.76

4.22

30

5.21

5.44

5.47

5.29

4.66

35

5.71

5.97

6.00

5.81

5.14

In addition to the retrofitting elements of Retrofit 3, Scenario Retrofit 4 includes the replacement of incandescent light bulbs by LED lighting. Besides the retrofitting elements of Retrofit 4, Scenario Retrofit 5 includes the installation of PV collectors with a conversion efficiency 14.5 % in the Southeast pitch and in the Northeast pitch of the roof: an area of 21.45 m2 is installed in the Southeast pitch; an area of 7.8 m2 is installed in the Northeast pitch. The peak power of the PV system is 4.24 kW. The installation of PV panels in the Southwest pitch is not convenient because this pitch is shadowed by high trees. In Scenario Retrofit 5, the heat pump provides also summer cooling and dehumidifying. When the heat pump works in cooling/dehumidifying mode and heat for DHW is required, the condensation heat is supplied to the DHW thermal storage. In the cooling/dehumidifying mode, cold water is delivered at 7 °C and returns at 12 °C. Values of the EER of the heat pump with condenser in external air, for several values of the external air temperature T e and of the compressor frequency, are reported in Table 7. Values of the EER of the heat pump with condensation heat supplied to DHW, either at T hw  = 50 °C or at T hw  = 48 °C, are reported in Table 8.
Table 7

EER of heat pump with cold water delivered at 7 °C and condenser in external air



Frequency [Hz]

T e [°C]

110

90

70

50

30

20

4.78

5.22

5.43

5.34

4.62

25

4.08

4.45

4.63

4.56

3.98

30

3.48

3.8

3.96

3.92

3.45

35

2.97

3.24

3.39

3.36

3.00

Table 8

EER of heat pump with cold water delivered at 7 °C and heat supplied to DHW



Frequency [Hz]

T hw [°C]

110

90

70

50

30

48

2.45

2.59

2.63

2.54

2.23

50

2.30

2.42

2.47

2.40

2.11

Building energy signature in the Present State

In order to validate the TRNSYS simulation model and the technical data collected for the building in the Present State, a pre-monitoring of the building started in May 2013 and is ongoing. The validation of the simulation code has been performed by considering the measured values of the internal air temperature, of the external air temperature and of the gas volume used for heating, with reference to the period from October 15th 2013 to April 15th 2014. Hourly values of the internal air temperature were measured by sensors placed in two rooms per apartment (kitchen and bedroom). Hourly values of the external air temperature were taken from measurements performed by the Urbana Weather Station, Bologna, close to the building. The volume of the gas used for heating was obtained through weekly readings of the gas meter connected with the central boiler. The values of the internal air temperature for Apartment 3a are reported in Fig. 8, as an example. The mean temperature for this apartment, in the period considered, was 20.3 °C for the berdroom and 20.9 °C for the kitchen. The mean internal-air temperature for the whole building, averaged among all apartments, was 20.2 °C, which can be considered as equal to the set temperature for the internal air, namely 20 °C. The values of the external air temperature, during the same period, are reported in Fig. 9 and compared with those of TRNSYS TMY. The figure shows that winter 2013–2014 was much milder than usual: the mean temperature from October 15th 2013 to April 15th 2014 was 10.15 °C, while that of TRNSYS TMY is 6.99 °C. A similar anomaly is happening in winter 2014–2105.
Fig. 8

Internal air temperature in Apartment 3a, from October 15th 2013 to April 15th 2014

Fig. 9

Measured external air temperature compared with TRNSYS TMY, from October 15th 2013 to April 15th 2014

The data employed to determine the experimental energy signature of the building are reported in Table 9. The duration of each period, in hours, is not always a multiple of 24 h, due to differences in the reading times, ranging from 1:30 pm to 5:00 pm. The lower heating value of the natural gas supplied to the building is 9.7 kWh/m3. The equation of the energy signature obtained is
Table 9

Data employed to determine the experimental energy signature

Period

Hours

Volume m3

Energy kWh

Power kW

Te °C

Oct. 15 – Oct. 30

360

110

1067

2.96

17.23

Oct. 30 – Nov. 30

744

866

8400.2

11.29

10.68

Nov. 30 – Dec. 12

288

584

5664.8

19.67

5.1

Dec. 12 – Jan. 20

936

1585

15374.5

16.43

7

Jan. 20 – Jan. 27

168

273

2648.1

15.76

7.91

Jan. 27 – Feb. 03

168

327

3171.9

18.88

5.18

Feb. 03 – Feb. 10

167.5

263

2551.1

15.23

8.64

Feb. 10 – Feb. 17

167.5

242

2347.4

14.01

9.13

Feb. 17 – Feb. 24

167

224

2172.8

13.01

9.24

Feb. 24 – March 03

169

236

2289.2

13.55

9.34

March 03 – March 10

170.5

214

2075.8

12.17

10.43

March 10 – March 17

167

165

1600.5

9.58

12.34

March 17 – March 24

168.5

135

1309.5

7.77

13.66

March 24 – March 31

166.5

171

1658.7

9.96

11.88

March 31 – April 07

170

108

1047.6

6.16

15.35

April 07 – April 15

190.5

74

717.8

3.77

16.1

$$ {\dot{Q}}_{\exp }=26.209-1.3541\;{T}_e, $$
(1)

where \( {\dot{Q}}_{\exp } \) is the mean value of the primary energy use per unit time, in kW, and T e is the mean value of the external air temperature in °C.

The data employed to determine the energy signature of the building in the Present State by the dynamic simulation performed through TRNSYS 17 are reported in Table 10. The period considered is from October 1st to April 30th of the TRNSYS TMY, with intervals of half month. The primary energy use in each period has been determined by dividing the thermal energy need, calculated through the dynamic simulation, by the overall efficiency of the heating plant. The latter has been set equal to 0.795, namely the product of the boiler efficiency 0.93, the distribution efficiency 0.9, and the emission efficiency 0.95. In the comparison between the experimental energy signature and the computational one, the control efficiency has been set equal to 1, because the real average value of the internal air temperature was 20 °C. The equation of the computational energy signature for the Present State is
Table 10

Data employed to determine the computational energy signature

Period

Hours

Energy kWh

Power kW

Te °C

Oct. 1 – Oct. 15

360

404.7

1.12

16.62

Oct. 16 – Oct. 31

384

2668.2

6.95

12.39

Nov. 01 – Nov. 15

360

4169.6

11.58

10.30

Nov. 16 – Nov. 30

360

6109.5

16.97

6.48

Dec. 01 – Dec. 15

360

7732.7

21.48

4.57

Dec. 16 – Dec. 31

384

8513.4

22.17

3.24

Jan. 01 – Jan. 15

360

8997.3

24.99

1.15

Jan.16 – Jan. 31

384

9409.0

24.50

2.23

Feb. 01 – Feb. 15

360

8374.7

23.26

2.37

Feb. 16 – Feb. 28

312

5568.1

17.85

6.61

March 01 – March 15

360

5582.1

15.51

6.93

March 16 – March 31

384

3313.0

8.63

11.74

April 01 – April 15

360

1431.7

3.98

15.04

April 16 – April 30

360

1835.0

5.10

12.61

$$ {\dot{Q}}_{\mathrm{comp}}=27.575-1.6208\;{T}_e, $$
(2)

where \( {\dot{Q}}_{\mathrm{comp}} \) is the mean value of the primary energy use per unit time, in kW, obtained throgh the dynamic simulation.

A comparison of the experimental energy signature and the computational one is illustrated in Fig. 10. The comparison shows that the gross heat loss coefficient of the building (namely the heat loss coefficient which takes into account also the plant efficiency) determined through the dynamic simulation, 1.62 kW/K, is 19 % higher that that found experimentally. Raesons for this discrepancy could be: a lower air exchange rate in the real operation with respect to that considered in the dynamic simulation (0.3 volumes per hour); a difference between the real heat loss coefficient and that calculated, for some enclosure elements; a higher plant efficiency with respect to that considered; an inaccuracy of the gas volume meter. Another difference between the experimental energy signature and the computational one is the higher value of the zero-load temperature which occurs in the real case. This difference is probably due to the lower internal heat gains in the real case with respect to the standard ones.
Fig. 10

Comparison between the experimental energy signature and the computational one

In fact, during the period considered most of the tenants were often outside and had a small use of energy for cooking and lighting. A more detailed analisis of the comparison between the experimental energy signature and the computed one will be performed in a specific paper. Here we will assume that the comparison illustrated in Fig. 10 is an acceptable validation of the simulation code and of the technical data collected on the building in its present state.

In the following, the annual use of primary energy in each scenario will be considered as equal to that obtained through the dynamic simulation.

Annual use of primary energy in each retrofit scenario

The dynamic simulation of the building in each retrofit scenario was performed through TRNSYS 17. The dynamic simulation of the air-to-water heat pump, with gas-boiler auxiliary, was performed by two own MATLAB codes: one for operation in heating and DHW production mode (with heating from October 1st to April 30th); one for operation in cooling/dehumidifying and/or DHW production mode (with cooling and dehumidifying from May 1st to September 30th). The evaluation of the electric energy produced by the PV system was performed according to the National Standards UNI/TS 11300–4 (2012) and UNI/TR 11328–1 (2009)

Primary energy use for heating and DHW in the Present State and Scenarios Retrofit 1 and Retrofit 2

The dynamic simulations through TRNSYS 17 allowed to determine the annual energy need for heating of the building, in each retrofit scenario, for each thermal zone and, as a consequence, for each apartment and for the whole building. The values of the annual energy need for heating in kWh, in the Present State and in Scenarios Retrofit 1 and Retrofit 2 are reported in Table 11, for each apartment and for the whole building. The energy need for heating in Scenarios Retrofit 3, Retrofit 4 and Retrofit 5 coincides with that in Scenario Retrofit 2. A hourly plot of the thermal power required by the building for heating, in Scenarios Retrofit 2 ÷ Retrofit 5, is reported in Fig. 11; it shows that the thermal power required by the building, in a TRNSYS 17 typical meteorological year, never exceeds 10 kW.
Table 11

Annual energy need for heating in each retrofit scenario, kWh

Scenario

Ap. 1a

Ap. 1b

Ap. 2a

Ap. 2b

Ap. 3a

Ap. 3b

Building

Present State

9487

17976

7479

6245

9475

8391

59,054

Retrofit 1

4579

9111

3435

2375

3867

2868

26,234

Retrofit 2 ÷ 5

2873

6114

1773

1608

2190

2112

16,670

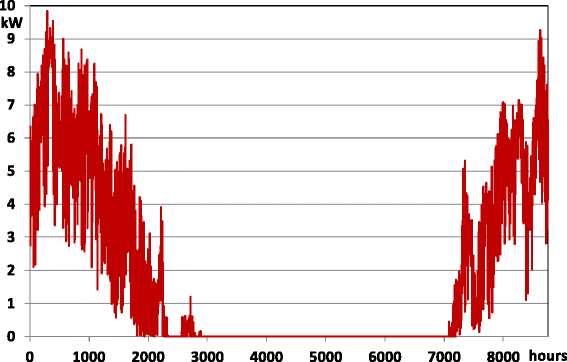

Fig. 11

Thermal power required by the building for heating, in Scenarios Retrofit 2 ÷ Retrofit 5

The primary energy use for heating in the Present State and in Scenarios Retrofit 1 and Retrofit 2 is determined by dividing the corresponding thermal energy need by the product of the following coefficients: boiler efficiency (0.93), distribution efficiency (0.90), emission efficiency of the radiators (0.95), control efficiency (0.97). The product of these coefficients is 0.771. The values of the primary energy use for heating in these scenarios are reported in Table 12.
Table 12

Annual use of primary energy for heating in Present State, Retrofit 1 and Retrofit 2, kWh

Scenario

Ap. 1a

Ap. 1b

Ap. 2a

Ap. 2b

Ap. 3a

Ap. 3b

Building

Present State

12,301

23,306

9697

8096

12,285

10,879

76,564

Retrofit 1

5937

11813

4453

3079

5014

3718

34,013

Retrofit 2

3725

7927

2299

2085

2839

2738

21,614

The thermal energy need for DHW is determined by applying the National Standard UNI/TS 11300–2, where the hot water is assumed to be delivered at 40 °C. The annual need for the single apartments and for the building, in kWh, is reported in Table 13, first row of results.
Table 13

Annual energy need for DHW, and use in Present State, Retrofit 1, Retrofit 2, kWh



Ap. 1a

Ap. 1b

Ap. 2a

Ap. 2b

Ap. 3a

Ap. 3b

Building

Need

853.3

1367.4

748.3

750.2

748.3

750.2

5217.8

Use

2771

2188

2430

2436

2430

2436

14,689

In the Present State and in Scenarios Retrofit 1 and Retrofit 2, DHW is supplied by an electric boiler in each apartment, except Apartment 1b, where a gas boiler is employed. According to UNI TS 11300–2, the emission and distribution efficiencies can be assumed as equal to 0.95 and 0.94, respectively. For an electric boiler, the efficiency (including thermal losses) can be assumed equal to 0.75. Since the efficiency of the electricity production system in Italy is 0.46, the overall efficiency for the electric boilers of Apartments 1a, 2a, 2b, 3a, 3b (including emission and distribution) is 0.308. The efficiency of a DHW gas boiler (including thermal losses) can be assumed equal to 0.70; therefore, the overall efficiency (including emission and distribution) for the gas boiler of Apartment 1b is 0.625. The values of the primary energy use for DHW in Present State and in Scenarios Retrofit 1 and Retrofit 2 are reported in Table 13, second row of results.

The values of the primary energy use for heating and DHW, in the Present State and in Scenarios Retrofit 1 and Retrofit 2 are reported in Table 14.
Table 14

Annual use of primary energy for heating and DHW in Scenarios Present State, Retrofit 1 and Retrofit 2, kWh

Scenario

Ap. 1a

Ap. 1b

Ap. 2a

Ap. 2b

Ap. 3a

Ap. 3b

Building

Present State

15,071

25,494

12,127

10,532

14,715

13,315

91,254

Retrofit 1

8707

14,001

6883

5515

7444

6154

48,703

Retrofit 2

6495

10,115

4729

4521

5269

5174

36,303

Primary energy use for heating and DHW in Scenarios Retrofit 3 and Retrofit 4

In Scenarios Retrofit 3 and Retrofit 4, heating and DHW are provided by a multifunction air to water heat pump and the present radiators are replaced by high efficient fan coils (one for each room) and low-temperature radiators (in bathrooms). New distribution circuits for heating and DHW are installed. The distribution, emission and control efficiencies for heating can be assumed as equal to 0.98, 0.98, 0.98. The emission and distribution efficiencies for DHW can be assumed equal to 0.95 and 0.96, respectively. Relevant technical data of the heat pump are reported in Tables 4, 5 and 6. The amounts of electric energy used by the heat pump for heating and DHW from October 1st to April 30th have been determined by a MATLAB hourly simulation code. The monthly amounts of the electric energy used by the heat pump during that period, in kWh, are reported in the first row of Table 15; those used by the fan coils and the total amounts are reported in the second and in the third row. The amounts of electric energy used by the heat pump for DHW from May 1st to September 30th are reported in Table 16.
Table 15

Electric energy used by heat pump and fan coils from October 1st to April 30th, in Scenarios Retrofit 3 and Retrofit 4, kWh



Oct

Nov

Dec

Jan

Feb

March

April

Season

Heat pump

258

869

1485

1704

1253

692

275

6536

Fan coils

8

15

26

26

19

16

8

117

Total

266

884

1511

1730

1272

708

283

6653

Table 16

Electric energy used by heat pump for DHW from May 1st to September 30th, in Scenarios Retrofit 3 and Retrofit 4, kWh



May

June

July

Aug

Sept

Season

Electric

133

123

118

120

125

619

The total annual use of electric energy for heating and DHW is 7272 kWh. By considering the efficiency of the electricity production system in Italy, 0.46, one finds a corresponding use of primary energy of 15809 kWh. The primary energy used by the gas boiler, for integration during October÷May, is 414 kWh. Therefore, the total annual use of primary energy for heating and DHW in Scenarios Retrofit 3 and Retrofit 4 is 16223 kWh. By partitioning this use between the apartments, in proportion to their needs, one obtains the results reported in Table 17.
Table 17

Annual use of primary energy for heating and DHW in Scenarios Retrofit 3 and Retrofit 4, kWh

Ap. 1a

Ap. 1b

Ap. 2a

Ap. 2b

Ap. 3a

Ap. 3b

Building

2762

5545

1869

1748

2178

2121

16,223

Primary energy use for lighting

An experimental study performed by Politecnico di Milano in 2004 (Di Andrea and Danese 2004) showed that the average annual use of electric energy for lighting in Italy, for apartments with an average area of 106 m2, is 375 kWh, i.e., 3.54 kWh/m2. The apartments considered in Ref. (Di Andrea and Danese 2004) had 80 % incandescent lamps, 15.8 % fluorescent lamps, and 4.2 % halogen lamps, a composition similar to that of the apartments under exam here, in scenarios Present State ÷ Retrofit 3. We assume that for apartments 1a, 2a, 2b, 3a, 3b, with an area of about 50 m2, the energy use per unit area is 20 % higher, i.e., 4.25 kWh/m2. With this assumption, the annual use of electric energy for lighting in kWh, for each apartment, is reported in Table 18. The first row refers to Scenarios Present State ÷ Retrofit 3, while the second row refers to Scenarios Retrofit 4 and Retrofit 5, where all lamps are replaced by LED lighting. The corresponding use of primary energy for lighting is reported in Table 19, where the efficiency 0.46 of the Italian electricity system has been considered.
Table 18

Annual use of electric energy for lighting, kWh

Scenario

Ap. 1a

Ap. 1b

Ap. 2a

Ap. 2b

Ap. 3a

Ap. 3b

Building

Present State ÷ Retrofit 3

190

284

167

167

167

167

1141

Retrofit 4 and Retrofit 5

38

57

33

33

33

33

228

Table 19

Annual use of primary energy for lighting, kWh

Scenario

Ap. 1a

Ap. 1b

Ap. 2a

Ap. 2b

Ap. 3a

Ap. 3b

Building

Present State ÷ Retrofit 3

413

617

362

363

362

363

2481

Retrofit 4 and Retrofit 5

83

123

72

73

72

73

496

Primary energy use for heating, DHW and lighting, in Scenarios Present State ÷ Retrofit 4

The total annual use of primary energy for heating, DHW and lighting, in Scenarios Present State ÷ Retrofit 4, in kWh, is resumed in Table 20. The primary energy use per unit area, in kWh/m2, is reported in the last column. The table shows that Scenario Retrofit 4 yields a percent reduction of primary energy use equal to 82.2 % with respect to the Present State.
Table 20

Annual use of primary energy for heating, DHW and lighting in Scenarios Present State ÷ Retrofit 4, kWh and kWh/m2

Scenario

Ap. 1a

Ap. 1b

Ap. 2a

Ap. 2b

Ap. 3a

Ap. 3b

Building

per m2

Present State

15,484

26,111

12,489

10,895

15,077

13,678

93,734

332.5

Retrofit 1

9120

14,618

7245

5878

7806

6517

51,184

181.6

Retrofit 2

6908

10,733

5091

4884

5631

5537

38,784

137.6

Retrofit 3

3175

6162

2231

2111

2540

2484

18,703

66.3

Retrofit 4

2844

5669

1941

1820

2250

2194

16,719

59.3

Primary energy use for heating, cooling, dehumidifying, DHW and lighting, in Scenario Retrofit 5

To further reduce the annual use of primary energy and to provide also summer cooling and dehumidifying, Scenario Retrofit 5 is considered, where PV panels are installed on the roof of the building: an area of 21.45 m2 is installed in the Southeast pitch; an area of 7.8 m2 is installed in the Northeast pitch. The amounts of electric energy used by heat pump and fan coils from October 1st to April 30th are the same as in Scenarios Retrofit 3 and Retrofit 4, and are reported in Table 15. The primary energy used by the gas boiler, in the same period, is 414 kWh.

Cooling and dehumidifying is provided from May 1st to September 30th: the set point is 27 °C for the internal air temperature and 50 % for the relative humidity. The monthly amounts of thermal energy need for cooling and dehumidifying for the whole building, evaluated by dynamic simulation through TRNSYS 17, are reported in Table 21. Also the monthly amounts of the thermal energy use are reported in the last row, obtained by considering an overall distribution, emission and control efficiency equal to 0.98 × 0.98 × 0.98.
Table 21

Monthly amounts of the thermal energy need and use for cooling and dehumidifying, kWh



May

June

July

Aug

Sept

Season

Sensible

566

1309

2350

2110

855

7190

Latent

102

175

286

273

125

962

Total

669

1485

2636

2383

980

8153

Total use

710

1577

2801

2532

1041

8662

The monthly amounts of the electric energy used by the heat pump for cooling, dehumidifying and DHW production during the period from May 1st to September 30th were determined by applying a hourly MATLAB simulation code. The results, in kWh, are reported in Table 22. In the same table, also the estimated use of electric energy by the fan coils is reported. The primary energy used by the gas boiler for integration of DHW during this period is about 1 kWh.
Table 22

Monthly amounts of the electric energy used for cooling, dehumidifying and DHW from May 1st to September 30th, kWh



May

June

July

Aug

Sept

Heat pump

353

526

824

779

423

Fan coils

8

15

26

26

8

Total

361

541

850

805

430

The monthly values of the total electric energy used (for heating, cooling-dehumidifying, DHW and lighting) are reported in the first row of Table 23. Part of the electric energy used is provided by the PV system. Monthly amounts of the electric energy produced by the PV system are reported in the second row of the table. In the other rows, the following monthly energy amounts are reported, in kWh: electric energy taken from the grid, corresponding primary energy, PV electric energy employed for self use, PV electric energy supplied to the grid. The table shows that the annual use of primary energy due to the use of electric energy from the grid is 12215 kWh. By adding the primary energy used by the gas boiler, 415 kWh, one obtains the total annual use of primary energy of the building, 12630 kWh, which corresponds to 44.8 kWh/m2.
Table 23

Monthly electric energy balance and primary energy use in Scenario Retrofit 5, kWh



Jan

Feb

Mar

April

May

June

July

Aug

Sept

Oct

Nov

Dec

Year

TOTAL

1749

1289

727

301

381

560

870

825

449

285

903

1530

9869

PV

148

224

356

467

564

603

681

577

431

306

167

139

4663

From grid

1601

1066

371

0

0

0

189

247

18

0

736

1391

5619

Primary

3481

2317

806

0

0

0

410

537

39

0

1600

3024

12,215

Self use

148

224

356

301

381

560

681

577

431

285

167

139

4251

To grid

0

0

0

166

183

43

0

0

0

21

0

0

413

Synopsis of the total annual use of primary energy in Scenarios Present State ÷ Retrofit 5

A synopsis of the total annual use of primary energy per unit heated floor area in Scenarios Present State ÷ Retrofit 5 is given in Fig. 12. The proposed retrofit scenario is Retrofit 5, which yields 86.5 % saving of primary energy with respect to the Present State and provides also summer cooling and dehumidifying, a service not available in other scenarios.
Fig. 12

Total annual use of primary energy per unit floor area in all Scenarios

Annual emission of CO2 in each retrofit scenario

The emission of carbon dioxide caused by the use of fossil fuels and of electric energy can be calculated by employing the European Standard EN 15603:2008. The fuel employed in the building is natural gas. The CO2 production coefficient is 277 kg/MWh for natural gas and 617 kg/MWh for electric energy.

The annual use of primary thermal energy for heating (THE heat), of electric energy for heating (EE heat), of primary thermal energy for DHW (THE DHW), of electric energy for DHW (EE DHW), of electric energy for lighting (EE light), of total primary thermal energy (THE), of total electric energy (EE), in kWh are reported in columns 2 ÷ 8 of Table 24. In columns 9 ÷ 11 of the same table are reported the kilograms of CO2 due to the use of thermal energy (CO2 THE), the kilograms of CO2 due to the use of electric energy (CO2 EE), the total kilograms of CO2 emitted per year.
Table 24

Annual use of primary thermal energy and of electric energy, kWh, and annual emission of CO2, kg

Scenario

THE heat

EE heat

THE DHW

EE DHW

EE light

THE

EE

CO2 THE

CO2 EE

CO2

Present State

76,564

0

2187

5749

1141

78,751

6890

21,814

4251

26,065

Retrofit 1

34,013

0

2187

5749

1141

36,201

6890

10,028

4251

14,279

Retrofit 2

21,614

0

2187

5749

1141

23,801

6890

6593

4251

10,844

Retrofit 3

414

6653

0

619

1141

414

8413

115

5191

5305

Retrofit 4

414

6653

0

619

228

414

7500

115

4628

4742

Retrofit 5

414



1



415

5619

115

3467

3582

In Scenarios Retrofit 3 and Retrofit 4, the use of electric energy for heating (EE heat) includes that for the production of DHW during the heating period. In Scenario Retrofit 5, the total use of electric energy cannot be divided into use for heating (EE heat) and use for DHW (EE DHW), on account of the PV electricity input. The table shows that the reduction in CO2 emission obtained in Scenario Retrofit 5 is 86.3 % with respect to the Present State.

Comfort improvement

A study on the thermal comfort has been carried out, to estimate the comfort improvement produced by the retrofitting. Dynamic simulations performed through TRNSYS 17 allowed to determine the time evolution of operative temperature, of the relative humidity, and of the Fanger indexes PMV (Predicted Mean Vote) and the PPD (Predicted Percentage Dissatisfied) (Fanger 1970) for each room, in scenarios Present State and Retrofot 5, with reference to TRNSYS TMY. The PMV index predicts the mean response of a large group of people according to a standard thermal sensation scale, ranging from +3 (hot) to −3 (cold), where 0 stands for neutral. The PPD index is related to the PMV index. Usual recommended limits for PMV and PPD indexes are −0.5 < PMV < 0.5 and PPD < 20 %, respectively. With reference to the standard UNI EN ISO 7730:2006, the following input conditions have been considered in winter and summer, respectively. For the heating period: clothing insulation of 1.0 clo (typical business suit), metabolic rate of 1.2 met (seated, light home work), air speed of 0.1 m/s; for the cooling period: clothing insulation of 0.5 clo (light summer clothing), metabolic rate of 1.2 met (seated, light home work), air speed of 0.3 m/s.

The results show that a relevant improvement of the thermal comfort can be obtained by the retrofitting, especially during summer, and that in scenario Retrofit 5 the PPD is expected to remain below the recommended limit of 20 % for every room, during the whole year. Some results are illustrated in Figs. 13, 14, 15 and 16, with reference to Apartment 3b, kitchen.
Fig. 13

Operative temperature for Apartment 3b, kitchen, from November 1st to February 28th

Fig. 14

PPD for Apartment 3b, kitchen, from November 1st to February 28th

Fig. 15

Operative temperature for Apartment 3b, kitchen, from June 1st to August 31st

Fig. 16

PPD for Apartment 3b, kitchen, from June 1st to August 31st

Figures 13 and 14 illustrate, respectively, the time evolution of the operative temperature and of the PPD during winter, from November 1st to February 28th. Fig. 13 shows that, while in the Present State the operative temperaure is often lower than 18 °C, in Retrofit 5 it is very close to the set temperature of the internal air, 20 °C. Fig. 14 shows the corresponding reduction of PPD. Figs. 15 and 16 illustrate, respectively, the time evolution of the operative temperature and of the PPD during summer, from June 1st to August 31st. Fig. 15 evidences that the combined effects of the thermal resistance and of the thermal inertia of the thermal insulation keep the operative temperature of the room very stable, even if the external temperature suddenly decreases and remains low for some days. Fig. 16 shows that the PPD, dramatically high in the Present State, remains below 10 % in Retrofit 5.

Economic analysis

For each retrofit scenario, the additional cost with respect to the previuos scenario and the total cost have been determined. Then, for each scenario, the annual money saving due to the reduction of use of energy sources has been determined. Hence, for each retrofit scenario, the financial payback time at zero interest rate, zero annual increase of the cost of energy sources, zero inflation rate has been calculated.

The additional cost and the total cost of each retrofit scenario are summarized in Table 25. The additional cost of Retrofit 3 (replacement of the plant for heating and DHW) is very high because, for the building considered, the replacement of the plant requires a complete construction (or reconstruction) of the distribution circuit. In fact, no distribution circuit for DHW is present, and the distribution circuit for heating is uninsulated and obsolete. Indeed, the very high additional cost of Retrofit 3 could be considered only in part as a cost for energy retrofitting, and in part as a necessary renovation cost of the building. The additional cost for the installation of heat pump, thermal storage tanks, fan coils and radiators is 24,555 Euro; the remaining additional cost (114,045 Euro) is for the installation of the new distribution circuits for heating and DHW and of heat meters.
Table 25

Additional cost and total cost of each retrofit scenario, Euro

Retrofit scenario

Add cost

Total cost

Retrofit 1

67,419

67,419

Retrofit 2

18,324

85,743

Retrofit 3

138,600

224,343

Retrofit 4

871

225,214

Retrofit 5

11,660

236,874

In order to determine the annual economic savings, the following data on the employed fuel, natural gas, and on electricity have been employed:
  • Natural gas: lower heating value 9.595 kWh/m3; cost 0.9 Euro/m3;

  • Electricity: cost 0.2 Euro/kWh; value of electricity supplied to grid 0.0389 Euro/kWh

The value of the PV electricity supplied to grid is very low at present in Italy. This is a sudden change with respect to the policy of a few years ago, when very high incentives were given to PV energy production and also the electricity produced and self-used was paid.

The annual savings obtainable in each retrofit scenario are illustrated in Table 26. The columns of the table report, for each scenario: the annual use of thermal primary energy (kWh), the annual use of electric energy (kWh), the annual use of natural gas (m3), the cost of the gas used (Euro), the cost of the electricity used (Euro), the total annual cost of gas plus electricity (Euro), the income due to PV electricity supplied to grid (Euro), the annual saving with respect to the Present State (Euro).
Table 26

Use of energy sources and savings in each scenario, per year

Scenario

THE kWh

EE kWh

Gas m3

Gas cost

EE cost

Cost

Income

Saving

Present State

78,751

6890

8119

7307

1378

8685

0

---

Retrofit 1

36,201

6890

3732

3359

1378

4737

0

3948

Retrofit 2

23,801

6890

2454

2208

1378

3586

0

5098

Retrofit 3

414

8413

43

38

1683

1721

0

6964

Retrofit 4

414

7500

43

38

1500

1538

0

7146

Retrofit 5

415

5619

43

39

1124

1162

16

7523

In the evaluation of the payback time, for each retrofit scenario, State incentives should be considered. Although the building is owned by the Municipality of Bologna, reference is made to the Italian State incentives delivered to private citizens, as recommended by the HERB consortium. The retrofit interventions are considered in the following sequence: thermal insulation of vertical and horizontal walls (Retrofit 1); Retrofit 1 + replacement of windows (Retrofit 2); Retrofit 2 + replacement of the heating and DHW plant (Retrofit 3); Retrofit 3 + LED lighting (Retrofit 4); Retrofit 4 + PV system (Retrofit 5). In this sequence, each additive cost receives a State contribution equal to 65 % of the cost. The LED lighting and the PV system receive this contribution because they are parts of a general retrofit plan which yields an annual use of primary energy lower than the limit prescribed by the Government for the applicability of the 65 % contribution. The State contribution is given in the form of tax reduction in 10 equal amounts, during a period of 10 years. Since vanishing interest and inflation rates are assumed, the total State contribution is considered as a cost reduction available at the first year.

The total cost and the total payback time of each retrofit scenario, without incentives and with incentives, are reported in Table 27. As shown in the table, the replacement of the plant, with the installation of new distribution circuits, enhances the general payback time with incentives from about 6 to about 11 years. This intervention, however, yields several benefits to the building: the possibility of supplying heating, DHW, cooling and dehumidifying with a very low annual use of primary energy; the renovation of the distribution system.
Table 27

Total cost (Euro) and total payback time (years) of each retrofit scenario

Scenario

Cost

Cost with incentives

Payback

Payback with incentives

Retrofit 1

67,419

23,597

17.1

6.0

Retrofit 2

85,743

30,010

16.8

5.9

Retrofit 3

224,343

78,520

32.2

11.3

Retrofit 4

225,214

78,825

31.5

11.0

Retrofit 5

236,874

82,906

31.5

11.0

Conclusions

Five scenarios for the energy retrofitting of a residential building with 6 apartments located in Bologna, North-Center Italy, have been analyzed through hourly dynamic simulations of the building and of the plant. Simulations of the building have been performed by TRNSYS 17; those of the multifunction heat pump system with thermal storage by own MATLAB codes. The simulation code has been validated, in the Present State scenario, by comparing the computational energy signature of the building with that determined experimentally by a pre-retrofit monitoring.

The proposed retrofit scenario is the most complete one, which includes: thermal insulation of the external vertical walls by calcium silicate hydrates; thermal insulation of horizontal enclosure elements by mineral wool; replacement of windows; installation of a multifuction heat pump with inverter and thermal storage for heating, cooling/dehumidifying, and DHW supply; installation of new distribution networks for heating/cooling and DHW; installation of high efficient fan coils and low temperature radiators; LED lighting; installation of a PV system on the roof. The proposed retrofit scenario yields a 86.5 % reduction of the use of primary energy, a 86.3 % reduction of CO2 emission, and a relevant comfort improvement. The payback time for private owners, considering State incentives, is 11 years.

Declarations

Acknowledgment

This research was funded by the European Union’s Seventh Framework Program, Theme EeB.NMP.2012-2, Project HERB (Holistic energy-efficient retrofitting of residential buildings), Grant agreement no: 314283.

Authors’ Affiliations

(1)
Department of Industrial Engineering, University of Bologna
(2)
Department of Sciences for Architecture, University of Genova

References

  1. Afonso C, Oliveira AC (2000) Solar chimneys: simulation and experiment. Energy Build 32:71–79View ArticleGoogle Scholar
  2. Amstalden RW, Kost M, Nathani C, Imboden DM (2007) Economic potential of energy-efficient retrofitting in the Swiss residential building sector: The effects of policy instruments and energy price expectations. Energy Policy 35:1819–1829View ArticleGoogle Scholar
  3. Ascione F, de Rossi F, Vanoli GP (2011) Energy retrofit of historical buildings: theoretical and experimental investigations for the modelling of reliable performance scenarios. Energy Build 43:1925–1936View ArticleGoogle Scholar
  4. Balaras CA, Droutsa K, Argiriou AA, Asimakopoulos DN (2000) Potential for energy conservation in apartment buildings. Energy Build 31:143–154View ArticleGoogle Scholar
  5. Bizzarri G, Morini GL (2006) New technologies for an effective energy retrofit of hospitals. Appl Therm Eng 26:161–169View ArticleGoogle Scholar
  6. Brignoli R, Cecchinato L, Zilio C (2013) Experimental analysis of an air–water heat pump with micro-channel heat exchanger. Appl Therm Eng 50:1119–1130View ArticleGoogle Scholar
  7. Chan HY, Riffat SB, Zhu J (2010) Review of passive solar heating and cooling technologies. Renew Sust Energ Rev 14:781–789View ArticleGoogle Scholar
  8. Chidiac SE, Catania EJC, Morofsky E, Foo S (2011a) A screening methodology for implementing cost effective energy retrofit measures in Canadian office buildings. Energy Build 43:614–620View ArticleGoogle Scholar
  9. Chidiac SE, Catania EJC, Morofsky E, Foo S (2011b) Effectiveness of single and multiple energy retrofit measures on the energy consumption of office buildings. Energy 36:5037–5052View ArticleGoogle Scholar
  10. Cuce E, Cuce PM, Wood CJ, Riffat SB (2014) Optimizing insulation thickness and analysing environmental impacts of aerogel-based thermal superinsulation in buildings. Energy Build 77:28–39View ArticleGoogle Scholar
  11. Dall’O’ G, Sarto L (2013) Potential and limits to improve energy efficiency in space heating in existing school buildings in northern Italy. Energy Build 67:298–308View ArticleGoogle Scholar
  12. Daouas N (2011) A study on optimum insulation thickness in walls and energy savings in Tunisian buildings based on analytical calculation of cooling and heating transmission loads. Appl Energy 88:156–164View ArticleGoogle Scholar
  13. Di Andrea F, Danese A (2004) Misure dei consumi di energia elettrica nel settore domestico., http://www.eerg.it/resource/pages/it/Progetti_-_MICENE/compendio_misure_consumi_elettrici.pdf Google Scholar
  14. Energy-efficient buildings. Multiannual roadmap for the contractual PPP under Horizon 2020. http://www.ectp.org/cws/params/ectp/download_files/36D2981v1_Eeb_cPPP_Roadmap_under.pdf
  15. Eurostat, European Commission portal for statistics. http://ec.europa.eu/eurostat/data/database
  16. Fanger PO (1970) Thermal comfort: Analysis and applications in environmental engineering. Copenhagen (Denmark): Danish Technical PressGoogle Scholar
  17. International Energy Statistics – EIA (US Energy Information Administration). http://www.eia.gov/cfapps/ipdbproject/IEDIndex3.cfm#
  18. IPCC Fifth Assessment Report – AR5. https://www.ipcc.ch/report/ar5/wg1/
  19. Liu X, Ni L, Lau SK, Li H (2013) Performance analysis of a multi-functional heat pump system in heating mode. Appl Therm Eng 51:698–710View ArticleGoogle Scholar
  20. Naldi C, Morini GL, Zanchini E (2014) A method for the choice of the optimal balance-point temperature of air-to-water heat pumps for heating. Sustain Cities Soc 12:85–91View ArticleGoogle Scholar
  21. Orosa JA, Oliveira AC (2009) Energy saving with passive climate control methods in Spanish office buildings. Energy Build 41:823–828View ArticleGoogle Scholar
  22. Pisello AL, Santamouris M, Cotana F (2013) Active cool roof effect: impact of cool roofs on cooling system efficiency. Adv Build Energy Res 7:209–221View ArticleGoogle Scholar
  23. Santamouris M (2014) Cooling the cities – a review of reflective and green roof mitigation technologies to fight heat island and improve comfort in urban environments. Sol Energy 103:682–703View ArticleGoogle Scholar
  24. Santamouris M, Synnefa A, Karlessi T (2011) Using advanced cool materials in the urban built environment to mitigate heat islands and improve thermal comfort conditions. Sol Energy 85:3085–3102View ArticleGoogle Scholar
  25. Shahrokni H, Levihnc F, Brandt N (2014) Big meter data analysis of the energy efficiency potential in Stockholm’s building stock. Energy Build 78:153–164View ArticleGoogle Scholar
  26. Terlizzese T, Zanchini E (2011) Economic and exergy analysis of alternative plants for a zero carbon building complex. Energy Build 43:787–795View ArticleGoogle Scholar
  27. Ucar A, Balo F (2009) Effect of fuel type on the optimum thickness of selected insulation materials for the four different climatic regions of Turkey. Appl Energy 86:730–736View ArticleGoogle Scholar
  28. Yu J, Yang C, Tian L, Liao D (2009) A study on optimum insulation thicknesses of external walls in hot summer and cold winter zone of China. Appl Energy 86:2520–2529View ArticleGoogle Scholar
  29. Zhao X, Lee JM, Riffat SB (2008) Numerical study of a novel counter-flow heat and mass exchanger for dew point evaporative cooling. Appl Therm Eng 28:1942–1951View ArticleGoogle Scholar
  30. Zhao X, Yang S, Duan Z, Riffat SB (2009) Feasibility study of a novel dew point air conditioning system for China building application. Build Environ 44:1990–1999View ArticleGoogle Scholar

Copyright

© The Author(s) 2015

This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited.
